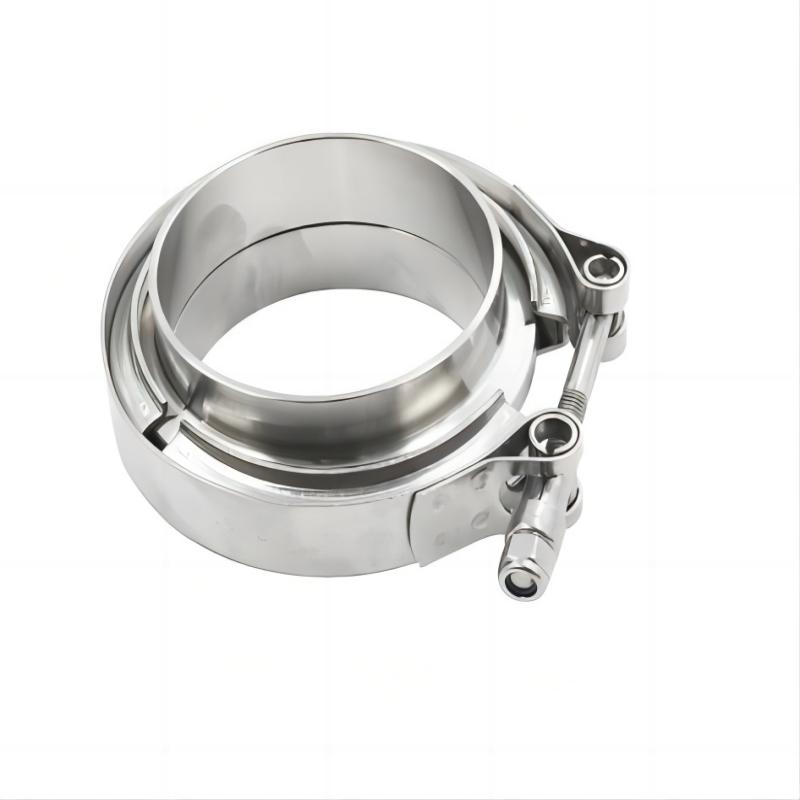

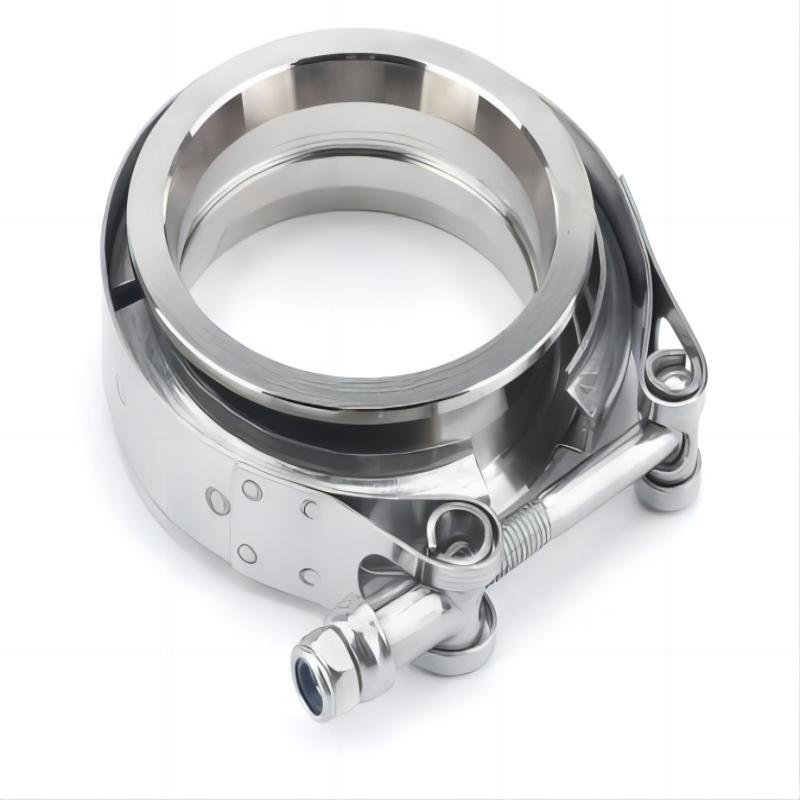

2.500″ V-BAND ASSEMBLY “MALE/FEMALE” 304 STAINLESS – STANDARD CLAMP

304 STAINLESS V-BAND ASSEMBLY — LEAK-FREE INTERLOCKING FLANGE DESIGN
The Ace Race Parts brand of Stainless Steel V-Band Assemblies features a 304 Stainless V-Band Clamp and a set of “Male/Female” interlocking V-Band Flanges, which are precision CNC machined from solid 304 Stainless round bar. Our V-Band Clamps, Flanges, and full Assemblies are suitable for fabricating exhaust systems, downpipes, merge collectors, and other custom or replacement components.

FEATURES

Precision CNC Machined 304 Stainless
Male/Female Interlocking Flange Design
Creates an Air-Tight Seal — No Gasket Required
Flanges are Counterbored to Matching Tube Size
Suitable for Downpipes, Exhausts, Merge Collectors, and more!
Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065″ and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our “How To Measure A V-Band Flange” information here: How to Measure a V-Band Flange.

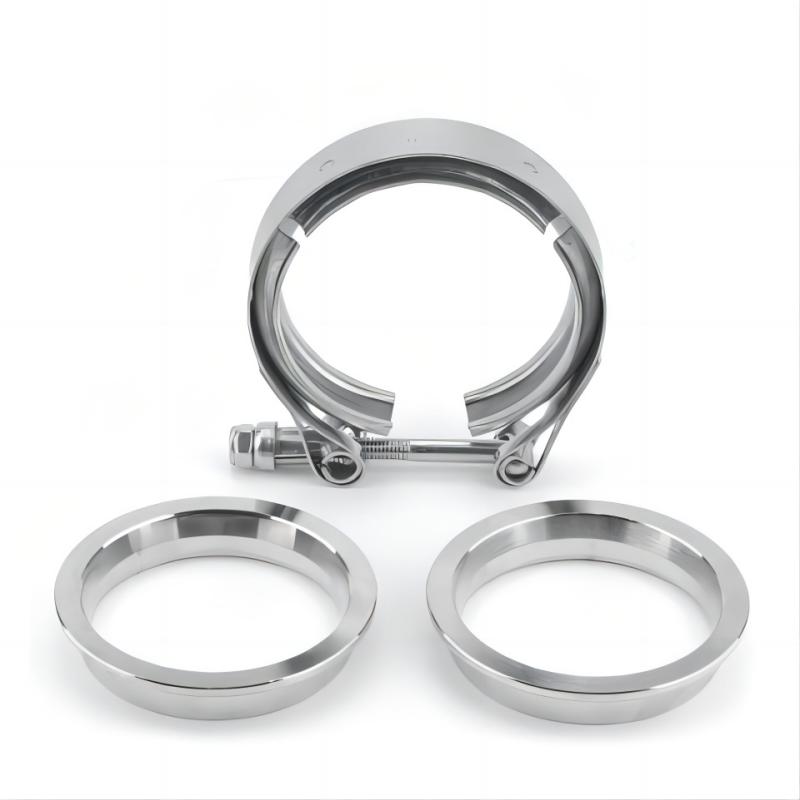

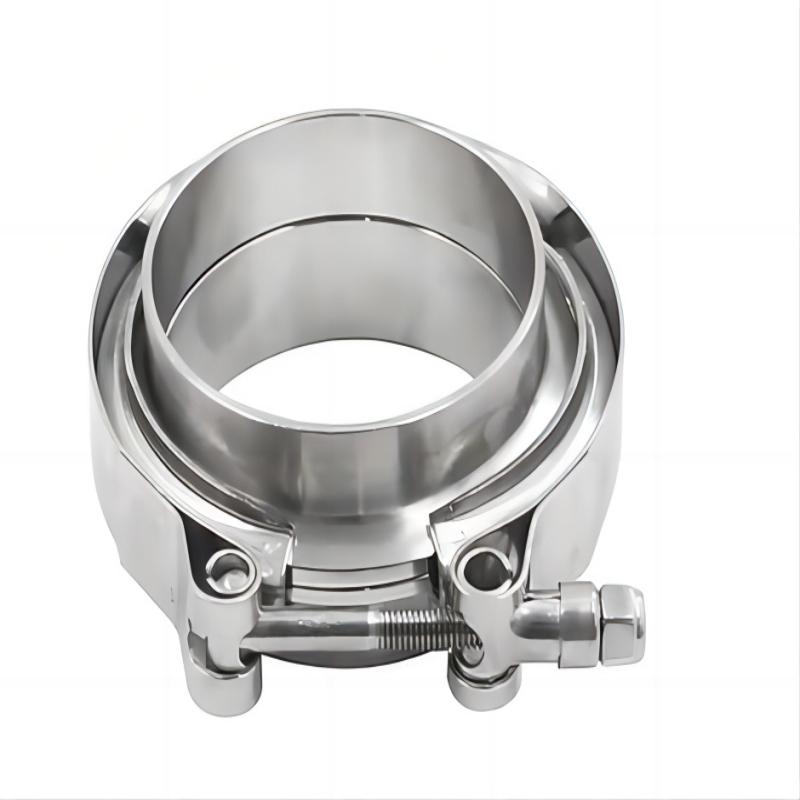

This V-Band Clamp Assembly includes the following items:

(1) V-Band Clamp, Standard T-Bolt Style, 304 Stainless (SKU: 22022)
(1) “Male” Interlocking V-Band Flange, 304 Stainless (SKU: 22038)
(1) “Female” Interlocking V-Band Flange, 304 Stainless (SKU: 22054)

DIMENSIONS
Matching Tube Size
2.500″
Overall Flange OD
3.083″
Flange Apex Width
0.170″
Flange Base Width
0.287″
DETAILS
Clamp Type
V-Band, Standard T-Bolt
Fastener Size
8mm
Removable T-Bolt
No
Fastener Torque Specs
Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs

V-BAND CLAMP NOTES
Our V-Band Clamps are supplied with two types of nuts: a zinc plated metal lock nut and a zinc plated non-locking nut. The zinc plated lock nut ensures that your clamp stays locked in placed during harsh conditions on the street, strip, and track. The zinc plated non-locking hex nut is provided so that the clamp can be used in mock-up, fitment, and pre-installation situations where a lock nut is not required. The non-locking hex nut will not lock in place during use to ensure that the threaded portion of the clamp will not be damaged.

The metal lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-thread the lock nut may cause damage to the “T-Bolt” section of the clamp. In some cases, excessive force can damage and/or break the “T-Bolt” section of the exhaust v-band clamp. If you intend to use our clamps during the mock-up process please use a non-locking hex nut.

V-BAND CLAMP DISCLAIMER
Ace Race Parts is NOT responsible for damage caused to our clamps due to the use of the locking-style nut during mock-up or removal. No warranty is offerred or implied for any threaded portion of this V-Band Clamp.

V-BAND FLANGE NOTES
Due to flange dimension differences, “Standard” style and “Quick Release” style V-Band Clamps and Flanges are NOT cross-compatible. Please reference the individual product title, description, and dimensional table to ensure compatibility.

COMPATIBILITY DISCLAIMER
Ace Race Parts is NOT responsible if incompatible V-Band components are ordered. For questions about product compatibility please consult our V-Band Dimension Chart or contact us directly.
