quick release v band clamp kit

1.500″ V-BAND ASSEMBLY “MALE/FEMALE” 304 STAINLESS – QUICK RELEASE CLAMP

QUICK RELEASE STYLE V-BAND CLAMP — LEAK-FREE INTERLOCKING FLANGE DESIGN

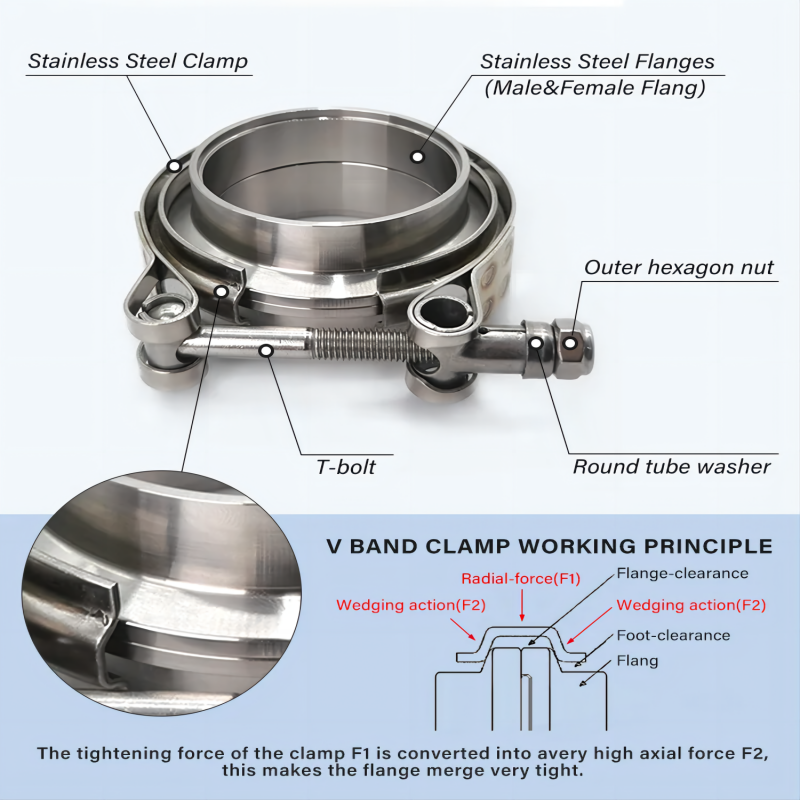

Quick-Release style V-Band Assemblies are precision CNC machined and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking “Male/Female” V-Band Flanges. Our Quick Release style V-Band Clamps feature a quick-release latch and a replaceable T-Bolt section that allows for quick assembly and disassembly. For applications where frequent removal of the clamp is required we recommend using our Quick Release style V-Band Clamps and compatible V-Band Flanges.

FEATURES:

Precision CNC Machined from 304 Stainless Steel
Male/Female style Interlocking Flanges
Counterbored to fit matching tube size material
Removable & Replaceable T-Bolt Fastener
Perfect for exhaust systems, turbo manifolds, and more!

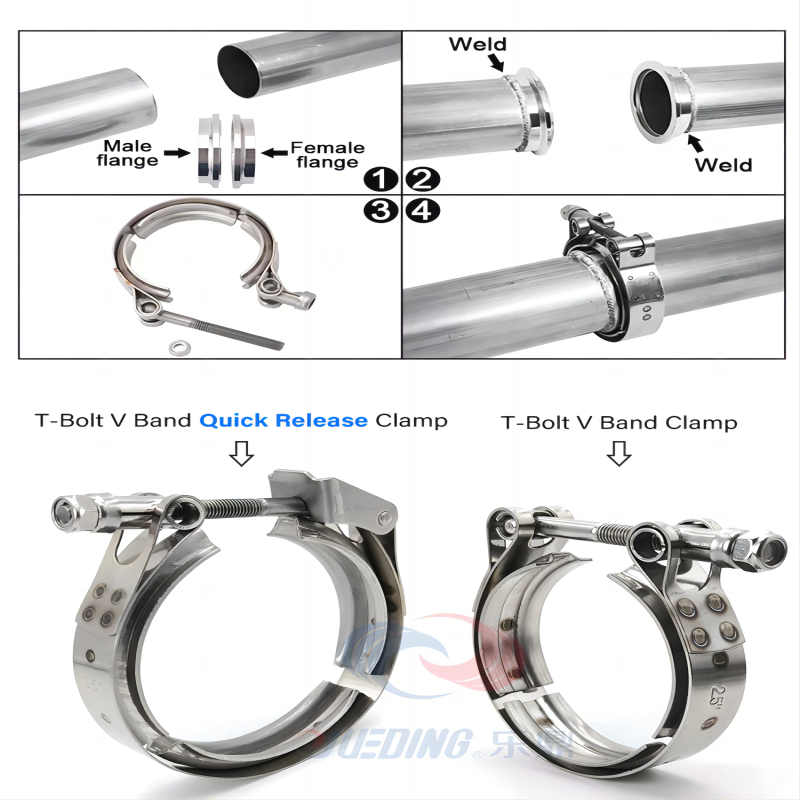

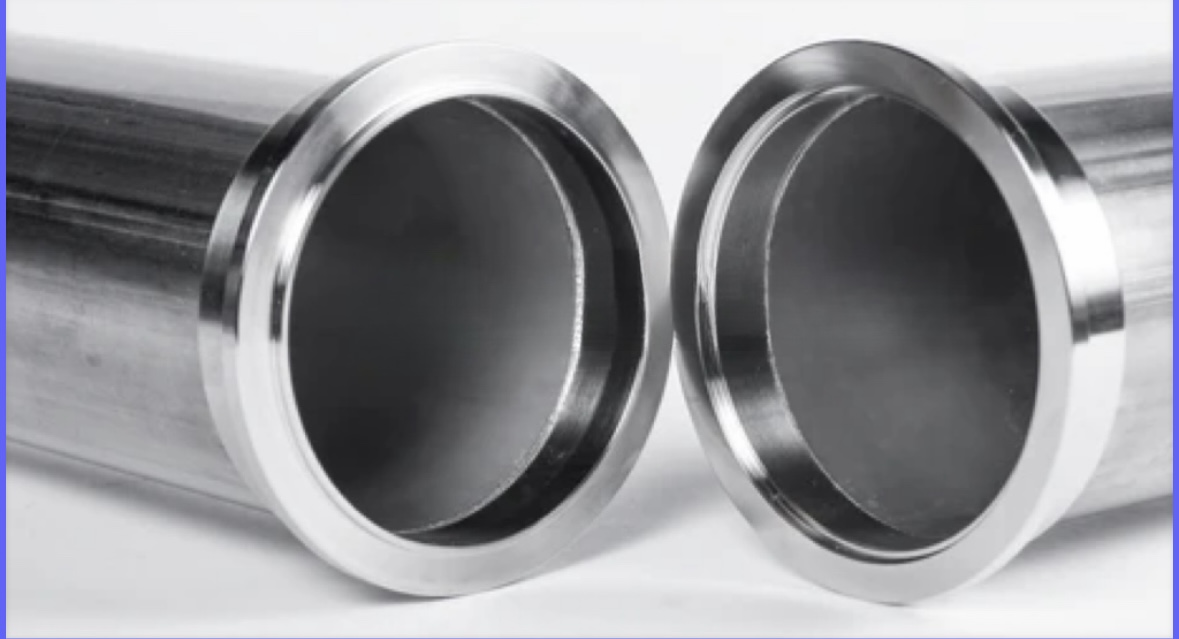

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065″ and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our “How To Measure A V-Band Flange” information here: How to Measure a V-Band Flange.

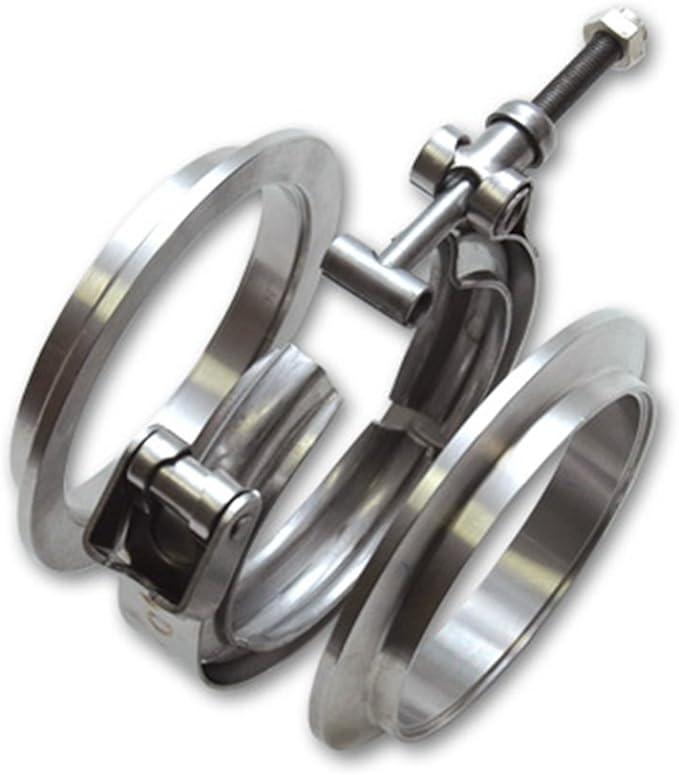

This V-Band Clamp Assembly includes the following items:

(1) V-Band Clamp, Quick Release, 304 Stainless (SKU: 22117)
(1) “Male” Interlocking V-Band Flange, 304 Stainless (SKU: 22133)
(1) “Female” Interlocking V-Band Flange, 304 Stainless (SKU: 22149)
DIMENSIONS
Matching Tube Size
1.500″
Overall Flange OD
2.178″
Flange Apex Width
0.137″
Flange Base Width
0.210″
DETAILS
Clamp Type
V-Band, Quick Release
Fastener Size
1/4″-28
Removable T-Bolt
Yes
Fastener Torque Specs
Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs
